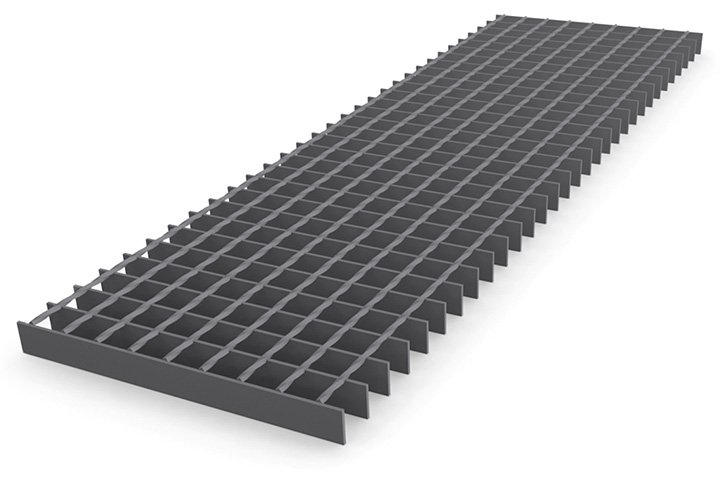

Flat Bar Grating

Made of Flat Bar as bearing bar and square twisted bar as bearing bar, Flat Bar gratings are produced by press welded and banded with flat bar usually or per customers request, such as angle.

Maximum transverse (cross) bar length 1025mm, depends on transverse bar pitch.

Maximum bearing bar length 6000mm

Usual mesh spacing
Bearing Bar: 12.5, 30, 40, 60, 90
Cross Bar: 30, 40, 50, 60, 100

Bearing Bar
20×3 to 40×3
25×4 to 60×4
25×5 to 60×5

Cross Bar
Twisted bar 6mm or round bar 5mm dia.
