Mulle Series
For mesh fabricated with rods only, there are a few types below for your selection for wall partition, facade, ceiling, etc..
-
Mulle-Double Rod DROD-1220-21060 open area: 59% warp rod: 21×1.2mm weft rod: 2mm warp pitch: 21mm weft pitch: 6mm thicknes: 4mm materials: stainless steel, steel application: facade, ceiling, partition DROD-1520-21040
open area: 43% warp rod: 2×1.2mm weft rod: 2mm warp pitch: 21mm weft pitch: 4mm thicknes: 4mm materials: stainless steel, steel, alu application: facade, ceiling, partition Quick View -

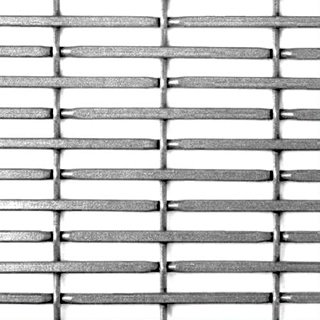

Mulle-Single Rod SROD-1520-21060

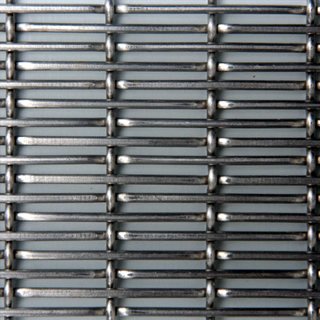

open area: 62% warp rod: 1.5mm weft rod: 2mm warp pitch: 21mm weft pitch: 6mm thicknes: 3.5mm materials: stainless steel application: facade, ceiling, partition SROD-2015-21040

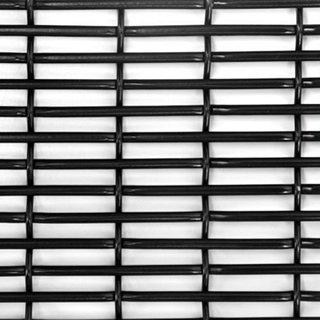

open area: 56% warp rod: 2mm weft rod: 1.5mm warp pitch: 21mm weft pitch: 4mm thicknes: 4mm materials: stainless steel application: facade, ceiling, partition SROD-1525-21060

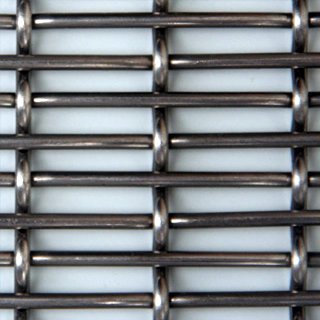

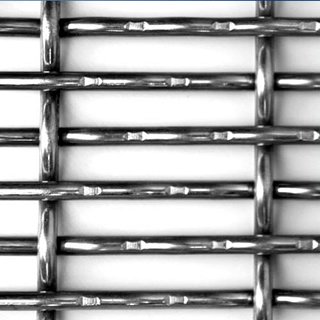

open area: 54% warp rod: 1.5mm weft rod: 2.5mm warp pitch: 21mm weft pitch: 6mm thicknes: 4mm materials: stainless steel application: facade, ceiling, partition SROD-2525-22060 open area: 51% warp rod: 2.5mm weft rod: 2.5mm warp pitch: 22mm weft pitch: 6mm thicknes: 6mm materials: stainless steel application: facade, ceiling SROD-5050-550140

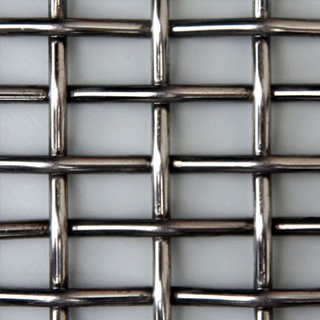

open area: 58% warp rod: 5mm weft rod: 5mm warp pitch: 55mm weft pitch: 14mm thicknes: 12mm materials: stainless steel application: facade, ceiling, barrier SROD-4040-200140
open area: 57% warp rod: 4mm weft rod: 4mm warp pitch: 20mm weft pitch: 14mm thicknes: 8mm materials: stainless steel application: facade, ceiling, barrier Quick View -
Mulle-Tight Rod TGTR-1014-21014 open area: 5% warp rod: 1mm weft rod: 1.4mm warp pitch: 21mm weft pitch: 1.4mm thicknes: 3.5mm materials: cuprum, stainless steel application: wall partition TGTR-1420-5020
open area: 5% warp rod: 1.4mm weft rod: 2mm warp pitch: 5mm weft pitch: 2mm thicknes: 5.5mm materials: cuprum, stainless steel application: wall partition TGTR-1410-6010
open area: 5% warp rod: 1.4mm weft rod: 1mm warp pitch: 6mm weft pitch: 1mm thicknes: 3.5mm materials: cuprum, stainless steel application: wall partition TGTR-1020-21030
open area: 5% warp rod: 1mm weft rod: 2mm warp pitch: 21mm weft pitch: 3mm thicknes: 3.5mm materials: cuprum, stainless steel application: wall partition Quick View -

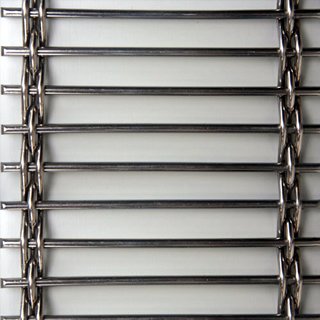

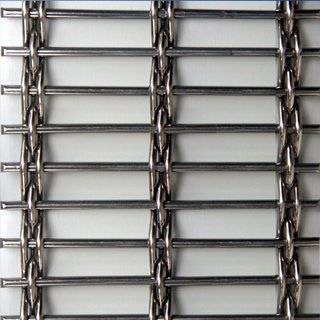

Mulle-Treble Rod TROD-2040-350145 open area: 60% warp rod: 3x2mm weft rod: 4mm warp pitch: 35mm weft pitch: 14.5mm thicknes: 8mm materials: stainless steel, steel, alu application: facad TROD-3040-1000145

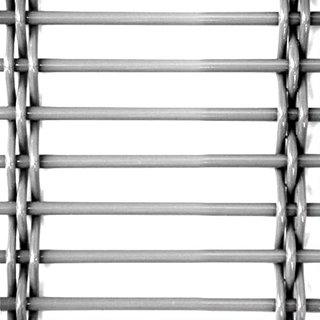

open area: 65% warp rod: 3x3mm weft rod: 4mm warp pitch: 100mm weft pitch: 14.5mm thicknes: 10mm materials: stainless steel, steel, alu application: facade TROD-2030-900100
open area: 65% warp rod: 3x2mm weft rod: 3mm warp pitch: 90mm weft pitch: 10mm thicknes: 7mm materials: stainless steel, steel, alu application: facade Quick View
