Harriol Series
This series of woven mesh are made of stainlss steel rod and cable, which is fascinated for wall partition, facade, ceiling, etc.. The following types are available for selection
-

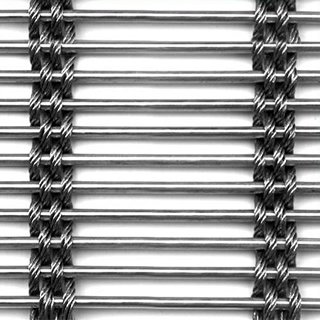

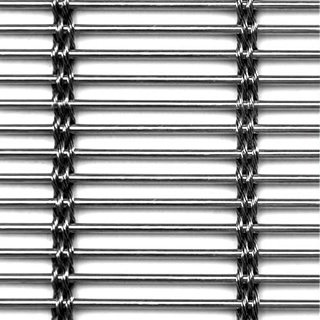

Harriol-Quadruple cable QCBL-2030-500651 open area: 43% warp cable: 4x2mm weft rod: 3mm warp pitch: 50mm weft pitch: 6.5mm thicknes: 7mm materials: stainless steel application: facade, ceiling, partition QCBL-1020-36050
open area: 53% warp cable: 4x1mm weft rod: 2mm warp pitch: 36mm weft pitch: 5mm thicknes: 4mm materials: stainless steel application: facade, ceiling, partition QCBL-2030-75065

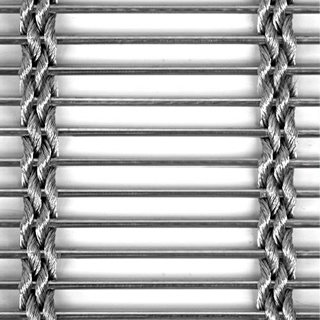

open area: 46% warp cable: 4x2mm weft rod: 3mm warp pitch: 75mm weft pitch: 6.5mm thicknes: 7mm materials: stainless steel application: facade, ceiling, partition QCBL-2030-500652
open area: 43% warp cable: 4x2mm weft rod: 30mm warp pitch: 50mm weft pitch: 6.5mm thicknes: 7mm materials: stainless steel application: facade, ceiling, partition Quick View -
Harriol-Single cable SCBL-2520-6081
open area: 37% warp cable: 2.5mm weft rod: 2mm warp pitch: 6mm weft pitch: 8mm thicknes: 7mm materials: stainless steel application: wall partition SCBL-2520-6082
open area: 37% warp cable: 2.5mm weft rod: 2mm warp pitch: 6mm weft pitch: 8mm thicknes: 7mm materials: stainless steel application: wall partition SCBL-3030-50100
open area: 21% warp cable: 3mm weft rod: 3mm warp pitch: 5mm weft pitch: 10mm thicknes: 9mm materials: stainless steel application: wall partition SCBL-1012-3060
open area: 50% warp cable: 1mm weft rod: 1.2mm warp pitch: 35mm weft pitch: 6mm thicknes: 3.5mm materials: stainless steel application: wall partition SCBL-2520-21080 open area: 74% warp rod: 2.5mm weft rod: 2mm warp pitch: 21mm weft pitch: 8mm thicknes: 5mm materials: stainless steel application: wall partition Quick View -

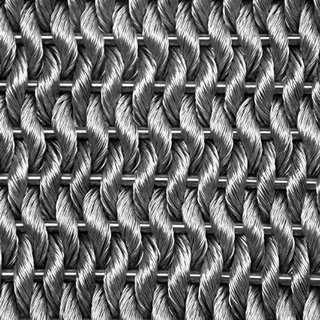

Harriol-Tight cable TGTC-2520-2580

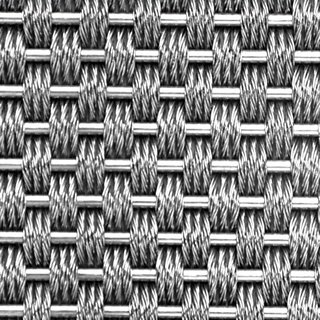

open area: 5% warp cable: 2.5mm weft rod: 2mm warp pitch: 2.5mm weft pitch: 8mm thicknes: 7mm materials: stainless steel application: wall partition TGTC-1425-1480 open area: 5% warp cable: 1.4mm weft rod: 2.5mm warp pitch: 1.4mm weft pitch: 8mm thicknes: 5.5mm materials: stainless steel application: wall partition Quick View -
Harriol-Treble cable TCBL-3040-1100145 open area: 65% warp cable: 3x3mm weft rod: 4mm warp pitch: 110mm weft pitch: 14.5mm thicknes: 10mm materials: stainless steel application: facade TCBL-2025-800100
open area: 68% warp cable: 3x2mm weft rod: 2.5mm warp pitch: 80mm weft pitch: 10mm thicknes: 6.5mm materials: stainless steel application: facade, ceiling, partition TCBL-2530-800100
open area: 62% warp cable: 3×2.5mm weft rod: 3mm warp pitch: 80mm weft pitch: 10mm thicknes: 8mm materials: stainless steel application: facade, ceiling, partition TCBL-1420-30080
open area: 63% warp cable: 3×1.4mm weft rod: 20mm warp pitch: 30mm weft pitch: 8mm thicknes: 5mm materials: stainless steel application: facade, ceiling, partition TCBL-1425-25080
open area: 56% warp cable: 3×1.4mm weft rod: 2.5mm warp pitch: 25mm weft pitch: 8mm thicknes: 8mm materials: stainless steel application: facade, ceiling Quick View
